SOFeX 2002 Cruise Sampling Event Type Descriptions

Scientists aboard the three ships, R/V Melville, R/V/ Revelle and USGCC Polar Star, used a variety of sampling equipment and techniques during their occupation of the SOFeX study area in the Southern Ocean during Austral summer 2002.

The information below was downloaded from the original SOFeX Equipment page at MBARI.

Additional information about the SOFeX project, including images of sampling devices, is available from the Moss Landing Marine Laboratories (MLML) Web site: http://www.mlml.calstate.edu/news/newsdetail.php?id=34 in a news release article, "Moss Landing researchers reveal iron as key to climate change", published in April 2004.

The Equipment



bulletSeawater will be added to 15,000 liter (4000 gallon) tanks containing 3,175 kilograms (7000 pounds) of iron sulfate. This will be distributed, along with the inert gas sulferhexafluoride (SF6), by a pumping system into the ship’s wash at an approximate depth of 5m. The iron patch will be laid out in a square pattern covering an area of 15 km x 15 km. This should result in an initial iron concentration of approximately 1 nM (10-100 times ambient).

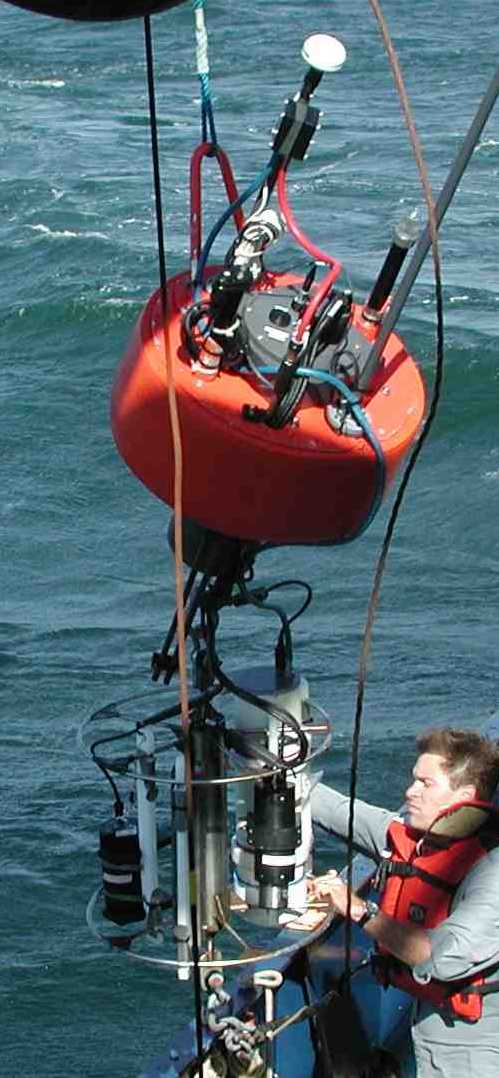

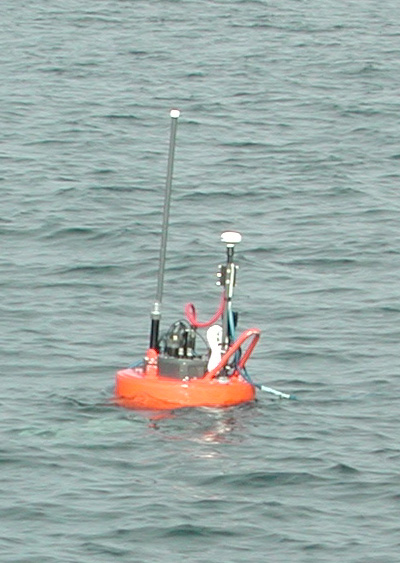

bullet A Lagrangian drifter attached to a holey sock drogue, instrumented with GPS, optical and chemical sensors and telemetry will be deployed to mark the center of the patch.  The ship will use the buoy position, in combination with SF6 concentration as  markers for sampling sites. The drifter will provide continuous reference positioning as well as fluorescence and nitrate, and CTD (Conductivity, Temperature & Depth) data. If the drifter buoy should slip relative to the center of the patch, a second buoy will be deployed in the center of the "marked" patch and the original buoy recovered.  In addition, an instrumented drifter will be placed in a proximal control area not enriched with iron to monitor ambient changes in the above parameters.


bullet We will occasionally stop to take vertical profile samples both in and out of the patch.  We were recently able to show that our “mini TM (Trace Metal) Rosette”, employing 2.5 L Teflon coated niskin bottles and teflon spigots could collect uncontaminated iron samples on a trip across the N. Pacific central gyre. A standard CTD Rosette (20 L bottles) will also be used for the collection of  nutrients, phytoplankton, oxygen, and other samples. These vertical profile measurements will provide insight as to how the chemical, physical and biological parameters are distributed throughout the water column.


bullet pumping_seasoar.jpg (93499 bytes)The SeaSoar is basically a towed, undulating platform that will be outfitted with various physical, biological and chemical sensors, as well as a pumping system to deliver seawater to the ship. It will provide real time information from the sensors as well as seawater for shipboard mapping of nutrients, SF6, pCO2, FRRF (Fast Repetition Rate Fluorometry).  A CTD, fluorometer, and ISUS (In Situ Ultraviolet Spectrometer) are among the many sensors that will be put on the SeaSoar to provide real time data. ISUS was developed here at MBARI. It is a chemical sensor that relies on the absorption of UV light by various constituents in seawater. We are particularly interested in its ability to measure nitrate in real time. Most shipboard mapping techniques have some lag time associated with them.
bulletThe shipboard mapping of nutrients will be performed using standard FIA (Flow Injection Analysis) techniques. We expect to see a decrease in nutrient concentrations in the patch relative to outside of the patch as the bloom develops. Likewise we expect to see a decrease in pCO2 concentrations. The FRRF measures the efficiency with which photosynthetic pigments in phytoplankton cells harvest and utilize light. FRRF was the first parameter to show a response to iron additions in previous experiments. Measurements of SF6  (by gas chromatography) will provide a quick means of insuring that we are either in or out the patch and that the drifter is remaining central to it. SF6, unlike iron, is inert and can be measured at extremely low levels (fM) making it an ideal tracer.

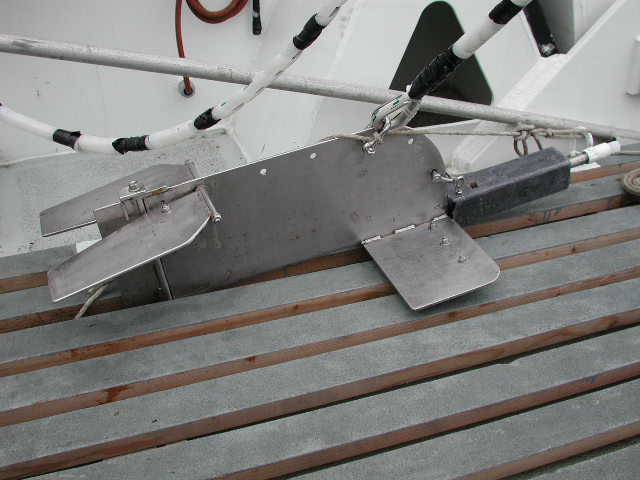

bulletSeawater for the shipboard mapping of iron will be pumped using an all Teflon pump, from an intake on a separate towed platform (The mighty TowFish), and delivered to a trace metal clean manifold. Iron concentrations will be determined using FIA with a detection limit near 0.02 nM. We expect to see iron concentrations decrease rapidly due to biological uptake.


bulletMLML Muti-Particle Interceptor Traps (PITS) will be deployed at a depth of 75 both in and out of the patch. These traps provided a wealth of new information about carbon and trace metal flux during the multiyear VERTEX (Vertical Exchange and Transport) program. The R/V Melville will retrieve the PITS at the end of the experiment.
bulletMultiple Large Volume Filtration Systems will also be deployed to collect sinking particulates. These are individual in situ pumping/filtration that can be deployed at multiple depths per cast to provide information on how particle flux changes with depth. If iron fertilization is truly a means of sequestering carbon to the deep ocean then we should see an increase in carbon flux in the patch relative to out.


bulletThe Radiation Van is a fully self-contained portable laboratory where all isotope work will be conducted. Primary production, the rate at which phytoplankton cells are incorporating carbon into organic matter, is of special interest. Samples are collected and inoculated with a small amount of low level radioactive inorganic carbon. They will then be placed in decktop incubators at ambient light and temperature levels for a period of time in which photosynthetic processes will convert the inorganic carbon into organic carbon. The samples are then filtered to capture the cells and the amount of radioactive carbon incorporated into organic carbon can be determined using a liquid scintillation counter (LSC).  The LSC measures the amount of light produced when radioactive carbon decays which is directly proportional to the amount incorporated.
bullet Decktop Incubators are simply large boxes in which surface seawater is circulated to maintain seawater temperature. They are usually covered to various degrees with fine mesh netting to allow light levels from different depths to be mimicked. T-hey provide a shipboard access to rate process experiments.


Additional Information for USCGC Polar Star

Methods include:

       Natural Thorium-234 for particle export

       Major elements of upper ocean C cycle

              DIC, DOC, POC & Nutrients, Fe, Si

       Biological indicators

              Pigments, stable C & N isotopes, Fv/Fm, productivity

       Physical patch tracer- SF6

Operations include:

       Finding patch (drogue with satellite positioning)

       Surface survey (seawater line- chemistry and tracers)

       Water catching

              standard CTD/Rosette

              trace metal clean bottles/Kevlar

       In-situ battery powered pumps for filtration

       Towed fish for TM sampling
